7″ TFT LCD MONITOR+IR REVERSING BACK SIGHT CAMERA CAR REAR VIEW SYSTEM

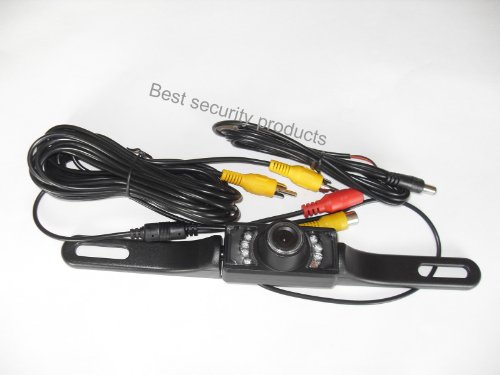

COLOR CMOS CAMERA
Pick-up Device : 1/3″ CMOS
TV System : PAL(CCIR) NESC(EIA)
Scanning system : PAL : 625 lines 50Field;NTSC : 525 lines,60Field
Lens : 2. 8mm
View Angle : 120Degree
Number of Pixels : 500(H)X582(V) 510(H)X492(V)
Horizontal Resolution : 420TV Lines
Scan frequency : 50Hz 60Hz
Electronic Shutter : 1/50~1/100(sec) 1/60~1/100,000(sec)
S/N Ration : >=48dB(AGC OFF)
Minimun illumination : 0. 8LUX/F1. 2
BLC : Open,White Balance : Auto
Gain Control(AGC) : Auto
Video Output : 1. 0Vp-p,75??BNC Connector
Synchronous System : -20?~+80?
Power supply : DC 12V

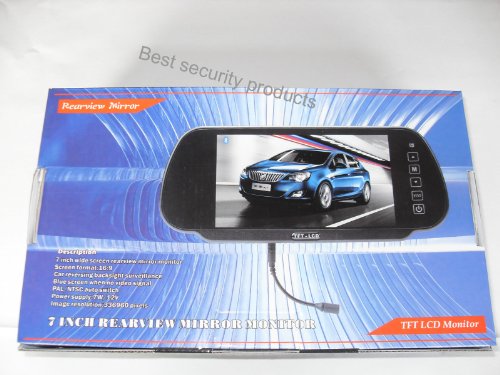

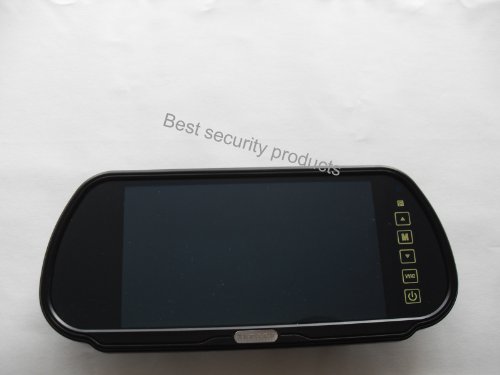

7″ CAR TFT LCD MONITOR
Display Size : 7 Inch
Resolution : 336960 pixels
System : PAL&NTSC auto switch
Power Supply : DC 12V
Consumption : 7W
Video : 2-channel video input;V1/V2 switch
Audio : one way volume input
